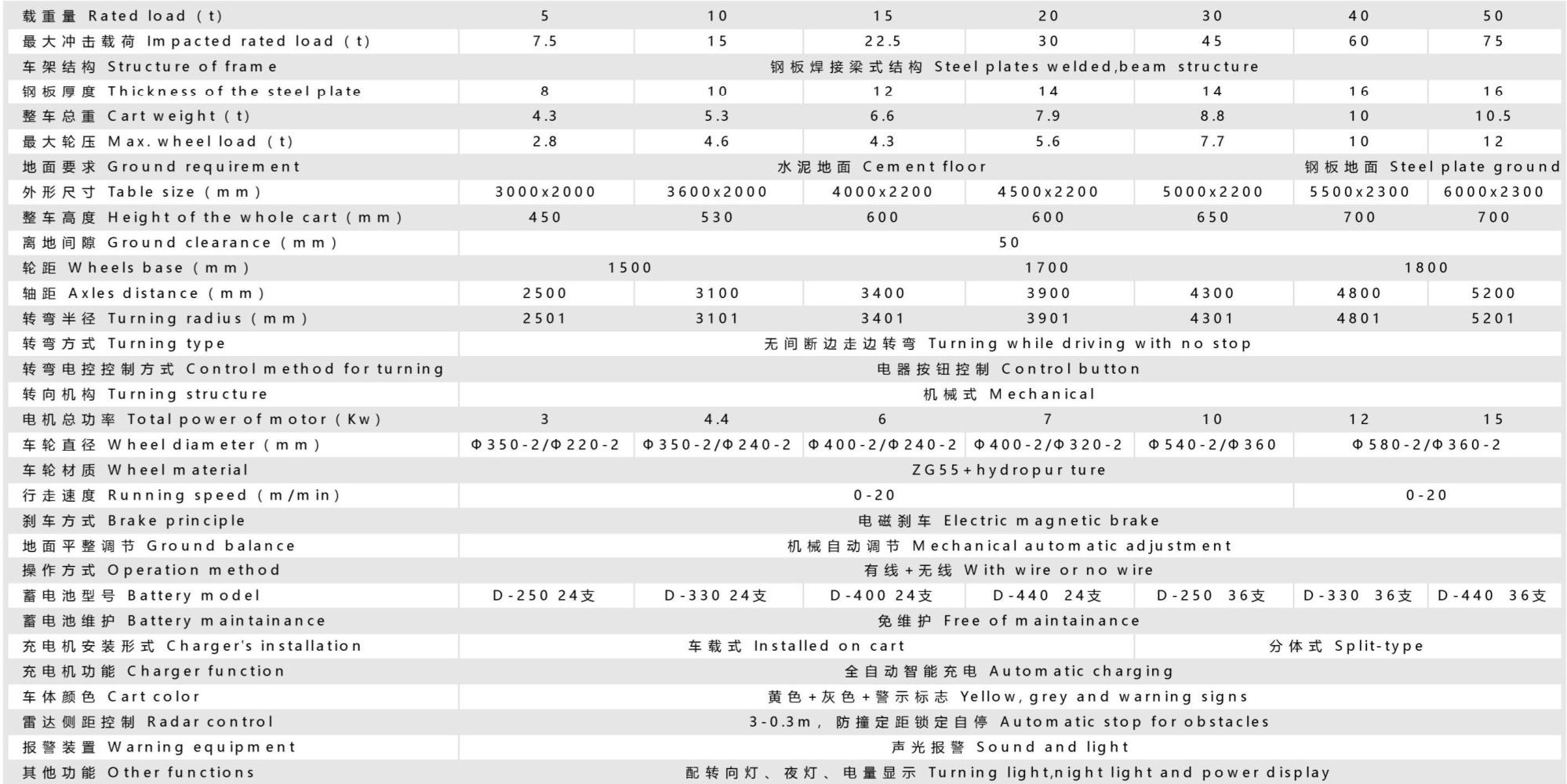

| Parameter | 5t | 10t | 15t | 20t | 30t | 40t | 50t |
|---|---|---|---|---|---|---|---|
| Rated load (t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| Impacted rated load (t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| Structure of frame | Steel plates welded, beam structure | ||||||
| Thickness of the steel plate | 8 | 10 | 12 | 14 | 14 | 16 | 16 |
| Cart weight (t) | 4.3 | 5.3 | 6.6 | 7.9 | 8.8 | 10 | 10.5 |
| Max. wheel load (t) | 2.8 | 4.6 | 4.3 | 5.6 | 7.7 | 10 | 12 |
| Ground requirement | Cement floor | Steel plate ground | |||||
| Table size (mm) | 3000x2000 | 3600x2000 | 4000x2200 | 4500x2200 | 5000x2200 | 5500x2300 | 6000x2300 |
| Height of the whole cart (mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 |
| Ground clearance (mm) | 50 | ||||||
| Wheels base (mm) | 1500 | 1700 | 1800 | ||||
| Axles distance (mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 |
| Turning radius (mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 |
