| Parameter | Value |
|---|---|
| Rated load (t) | 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 |
| Frame Structure | Steel plate welded beam structure |
| Steel Plate Thickness (mm) | Custom - made |
| Total Motor Power (kw) | 3 - 15 |
| Speed Regulation | Stepless speed regulation |
| Motor Voltage (v) | 60 - 72 |
| Traveling Speed (km/h) | No - load ≤20km, Loaded ≤5km |
| Power (kw) | 3 - 12 |
| Controller | DC 72v |
| Maximum Vehicle Speed (km) | 28 |
| Range (km) | 50 - 60 |
| Maximum Gradient (degrees) | 15 |
| Minimum Ground Clearance (mm) | 150 |
| Braking Method | Foot brake + Hand brake |
| Steering Mechanism | Steering wheel rotation |
| Body Color | Yellow + Grey + Warning strips |
| Length (mm) / Width (mm) / Height (mm) | ≤3000 / ≤6000 / Custom - made |
| Power Supply Method | Battery / Lithium - ion battery |
| Lifting Customization | Hydraulic lifting / Turbine - worm manual lifting / Flip - top lifting / Shear - type lifting |
| Tabletop Customization | Wood board / Fire - resistant brick / Insulating board / Insulating plate / Printed aluminum plate |

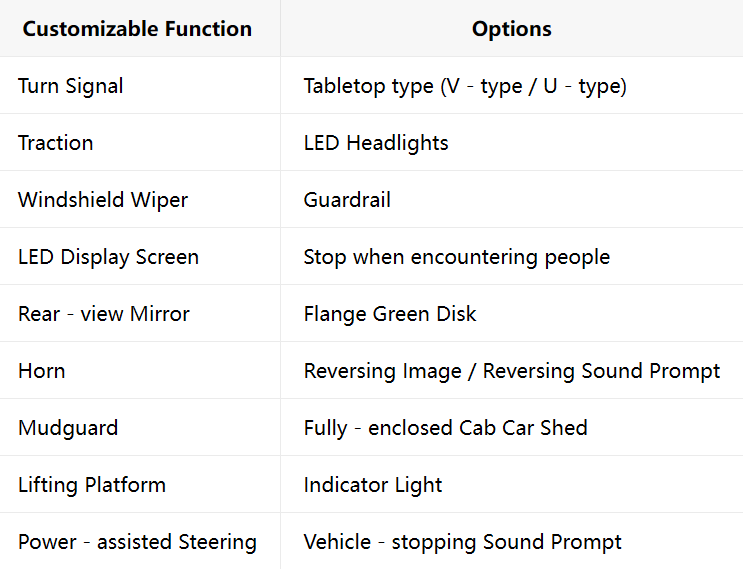

| Customizable Function | Options |
|---|---|
| Turn Signal | Tabletop type (V - type / U - type) |
| Traction | LED Headlights |
| Windshield Wiper | Guardrail |
| LED Display Screen | Stop when encountering people |
| Rear - view Mirror | Flange Green Disk |
| Horn | Reversing Image / Reversing Sound Prompt |
| Mudguard | Fully - enclosed Cab Car Shed |
| Lifting Platform | Indicator Light |
| Power - assisted Steering | Vehicle - stopping Sound Prompt |
