Main Features

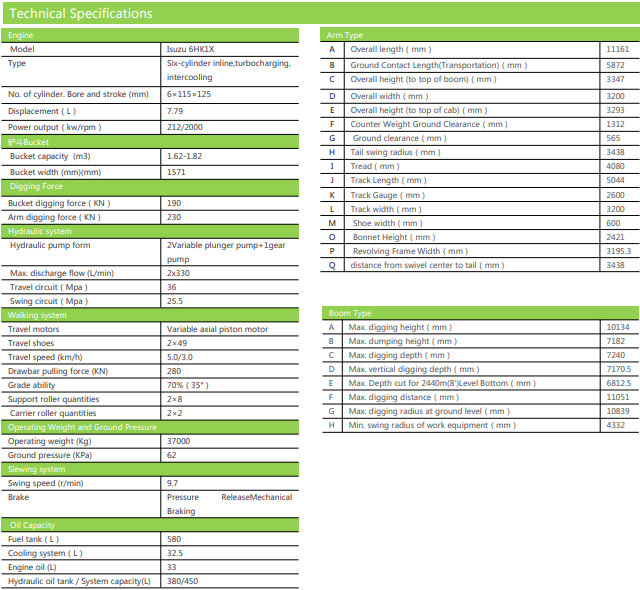

| Technical Specifications | Details |
|---|---|
| Engine | |
| Model | Isuzu 6HK1X |
| Type | Six - cylinder inline, turbocharging, intercooling |
| No. of cylinder. Bore and stroke (mm) | 6×115×125 |
| Displacement（L） | 7.79 |
| Power output（kw/rpm） | 212/2000 |
| Bucket | |
| Bucket capacity (m³) | 1.62 - 1.82 |
| Bucket width (mm) | 1571 |
| Bucket digging force（KN） | 190 |
| Arm digging force（KN） | 230 |
| Hydraulic system | |
| Hydraulic pump form | 2Variable plunger pump + 1gear pump |
| Max. discharge flow (L/min) | 2x330 |
| Travel circuit（Mpa） | 36 |
| Swing circuit（Mpa） | 25.5 |
| Walking system | |
| Travel motors | Variable axial piston motor |
| Travel shoes | 2×49 |
| Travel speed (km/h) | 5.0/3.0 |
| Drawbar pulling force (KN) | 280 |
| Grade ability | 70%（35°） |
| Support roller quantities | 2×8 |
| Carrier roller quantities | 2×2 |
| Operating Weight and Ground Pressure | |
| Operating weight (Kg) | 37000 |
| Ground pressure (KPa) | 62 |
| Slewing system | |
| Swing speed (r/min) | 9.7 |
| Brake Pressure Release | Mechanical Braking |
| Oil Capacity | |
| Fuel tank（L） | 580 |
| Cooling system（L） | 32.5 |
| Engine oil (L) | 33 |
| Hydraulic oil tank / System capacity(L) | 380/450 |
| Arm Type Dimensions | |
| Overall length（mm） | 11161 |
| Ground Contact Length(Transportation)（mm） | 5872 |
| Overall height (to top of boom)（mm） | 3347 |
| Overall width（mm） | 3200 |
| Overall height (to top of cab)（mm） | 3293 |
| Counter Weight Ground Clearance（mm） | 1312 |
| Ground clearance（mm） | 565 |
| Tail swing radius（mm） | 3438 |
| Tread（mm） | 4080 |
| Track Length（mm） |
