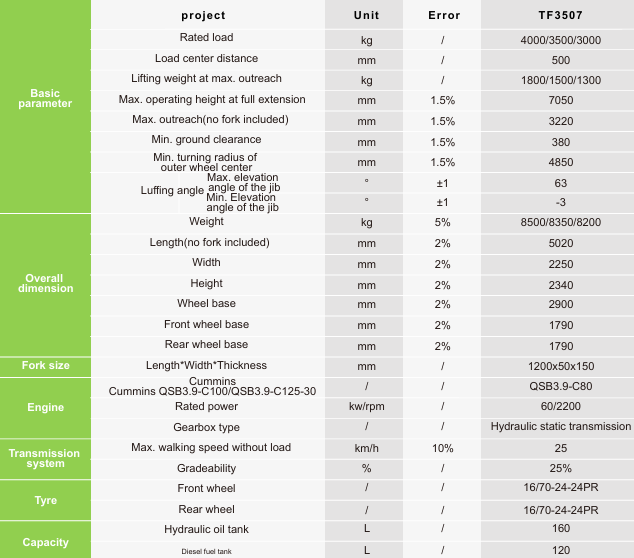

| Parameter Category | Parameter Name | Unit | Error | TF3507 |
|---|---|---|---|---|
| Basic Parameter | Rated load | kg | / | 4000/3500/3000 |
| Load center distance | mm | / | 500 | |
| Lifting weight at max. outreach | kg | / | 1800/1500/1300 | |
| Max. operating height at full extension | mm | 1.5% | 7050 | |
| Max. outreach(no fork included) | mm | 1.5% | 3220 | |
| Min. ground clearance | mm | 1.5% | 380 | |
| Min. turning radius of outer wheel | mm | 1.5% | 4850 | |
| Max. elevation angle of the job | ° | ±1 | 63 | |
| Luffing angle of the job | ° | ±1 | -3 | |
| Weight | kg | 5% | 8500/8350/8200 | |
| Overall dimension | Length(no fork included) | mm | 2% | 5020 |
| Width | mm | 2% | 2250 | |
| Height | mm | 2% | 2340 | |
| Wheel base | mm | 2% | 2900 | |
| Front wheel base | mm | 2% | 1790 | |
| Rear wheel base | mm | 2% | 1790 | |
| Fork size | Length×Width×Thickness | mm | / | 1200×50×150 |
| Engine | Cummins | / | / | QSB3.9 - C80 |
| Rated power | kw / rpm | / | 22/2200 | |
| Transmission system | Gearbox type | / | / | Hydraulic static transmission |
| Max. walking speed without load | km/h | 10% |
