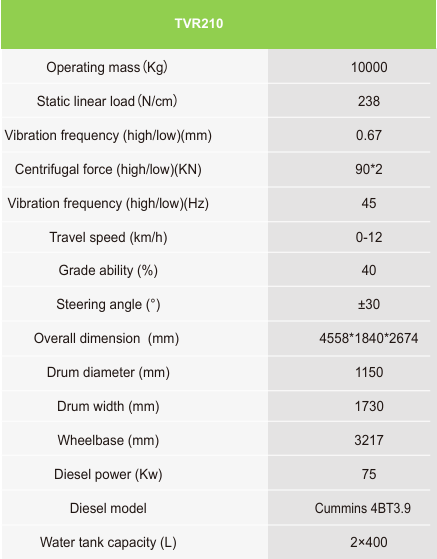

| TVR210 | |
|---|---|
| Operating mass (Kg) | 10000 |
| Static linear load (N/cm) | 238 |
| Vibration frequency (high/low)(mm) | 0.67 |
| Centrifugal force (high/low)(KN) | 90*2 |
| Vibration frequency (high/low)(Hz) | 45 |
| Travel speed (km/h) | 0 - 12 |
| Grade ability (%) | 40 |
| Steering angle (°) | ±30 |
| Overall dimension (mm) | 455818402674 |
| Drum diameter (mm) | 1150 |
| Drum width (mm) | 1730 |
| Wheelbase (mm) | 3217 |
| Diesel power (Kw) | 75 |
| Diesel model | Cummins 4BT3.9 |
| Water tank capacity (L) | 2×400 |
