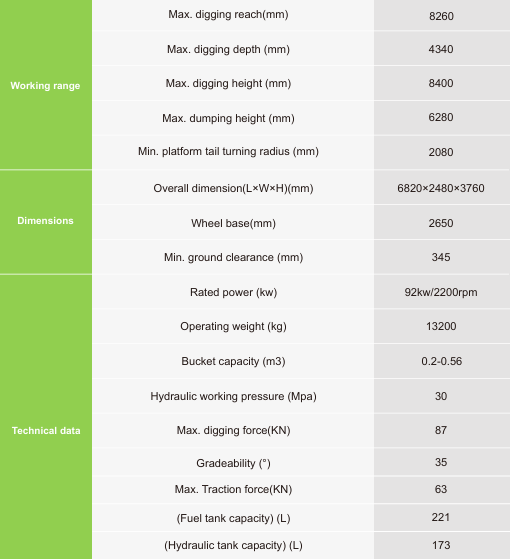

| Category | Item | Value |
|---|---|---|
| Working range | Max. digging reach(mm) | 8260 |
| Max. digging depth (mm) | 4340 | |
| Max. digging height (mm) | 8400 | |
| Max. dumping height (mm) | 6280 | |
| Min. platform tail turning radius (mm) | 2080 | |
| Dimensions | Overall dimension(L×W×H)(mm) | 6820×2480×3760 |
| Wheel base(mm) | 2650 | |
| Min. ground clearance (mm) | 345 | |
| Technical data | Rated power (kw) | 92kw/2200rpm |
| Operating weight (kg) | 13200 | |
| Bucket capacity (m3) | 0.2 - 0.56 | |
| Hydraulic working pressure (Mpa) | 30 | |
| Max. digging force(KN) | 87 | |
| Gradeability (°) | 35 | |
| Max. Traction force(KN) | 63 | |
| (Fuel tank capacity) (L) | 221 | |
| (Hydraulic tank capacity) (L) | 173 |
