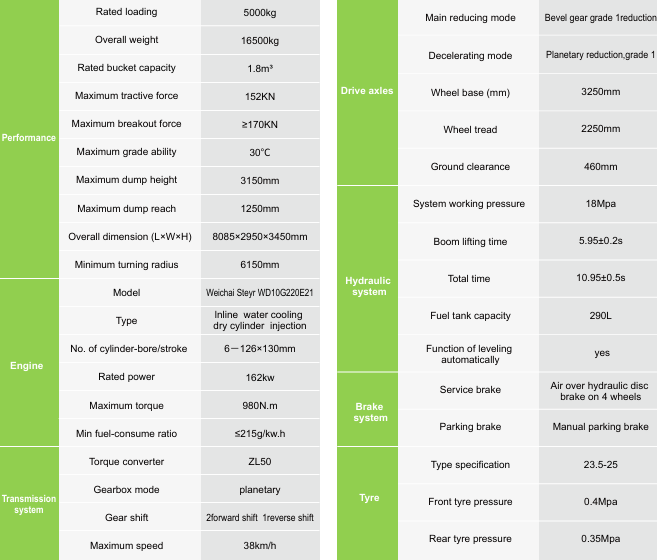

| Performance | Drive axles | |||
|---|---|---|---|---|
| Rated loading | 5000kg | Main reducing mode | Bevel gear grade 1 reduction | |
| Overall weight | 16500kg | Decelerating mode | Planetary reduction, grade 1 | |
| Rated bucket capacity | 1.8m³ | Wheel base (mm) | 3250mm | |
| Maximum tractive force | 152KN | Wheel tread | 2250mm | |
| Maximum breakout force | ≥170KN | Ground clearance | 460mm | |
| Maximum grade ability | 30°C | System working pressure | 18Mpa | |
| Maximum dump height | 3150mm | Boom lifting time | 5.95±0.2s | |
| Maximum dump reach | 1250mm | Total time | 10.95±0.5s | |
| Overall dimension (L×W×H) | 8085×2950×3450mm | Fuel tank capacity | 290L | |
| Minimum turning radius | 6150mm | Function of leveling automatically | yes | |
| Engine | Hydraulic system | |||
| Model | Weichai Steyr WD10G220E21 | Service brake | Air over hydraulic disc brake on 4 wheels | |
| Type | Inline water cooling dry cylinder injection | Parking brake | Manual parking brake | |
| No. of cylinder-bore/stroke | 6－126×130mm | |||
| Rated power | 162kw | Tyre | ||
| Maximum torque | 980N.m | Type specification | 23.5 - 25 | |
| Min fuel-consume ratio | ≤215g/kw.h | Front tyre pressure | 0.4Mpa | |
| Transmission system | Rear tyre pressure | 0.35Mpa | ||
| Torque converter | ZL50 | |||
| Gearbox mode | planetary | |||
| Gear shift | 2 forward shift |
