Wheel Excavator DWE6250

This heavy - duty machinery offers multiple advantages. Its new load - sensing hydraulic system saves fuel and reduces power loss. With self - developed drive axles, it has strong load - bearing capacity. The ergonomic layout and upgraded control equipmen
  • Product Detail



classification

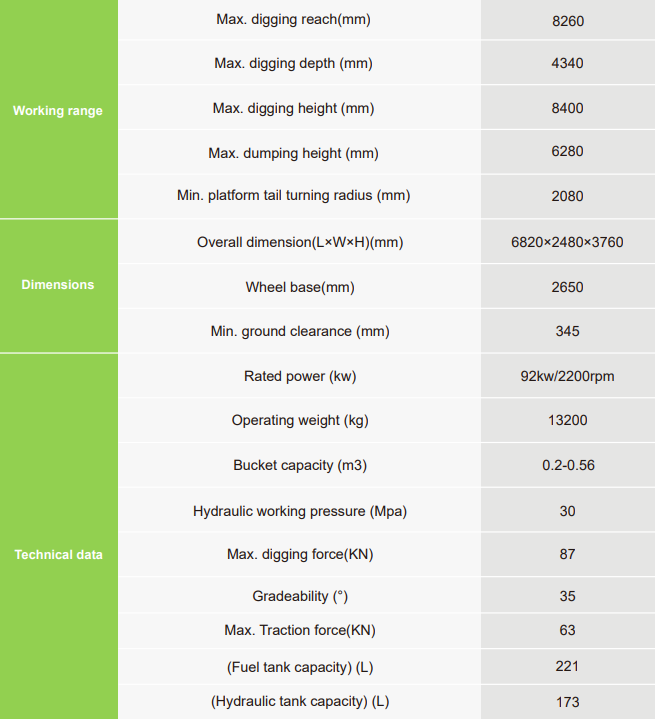

Specific parameters
Working range(工作范围)Max. digging reach(mm):8260
Max. digging depth (mm):4340

Max. digging height (mm):8400

Max. dumping height (mm):6280

Min. platform tail turning radius (mm):2080
Dimensions(尺寸)Overall dimension(L×W×H)(mm):6820×2480×3760
Wheel base(mm):2650
Min. ground clearance (mm):345
Technical data(技术参数)Rated power (kw):92kw/2200rpm
Operating weight (kg):13200
Bucket capacity (m³):0.2 - 0.56
Hydraulic working pressure (Mpa):30
Max. digging force(KN):87
Gradeability (°):35
Max. Traction force(KN):63
(Fuel tank capacity) (L):221
(Hydraulic tank capacity) (L):173
