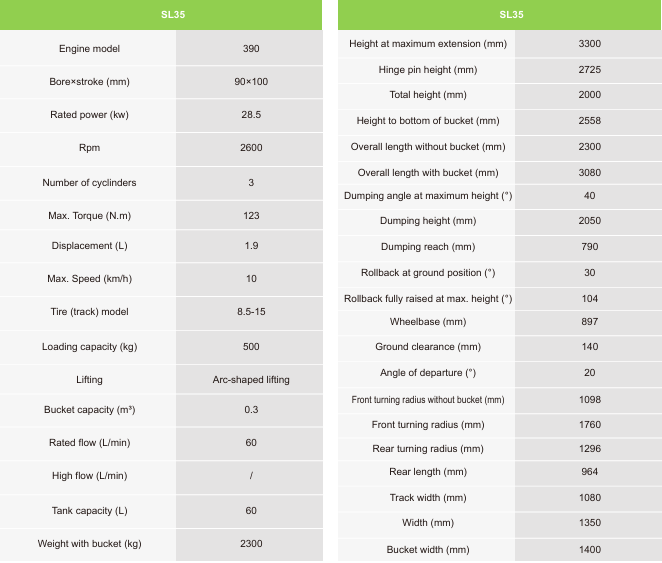

| Parameter Category | Parameter Details |
|---|---|
| Engine Parameters | Engine model: 390 Bore×stroke (mm): 90×100 Rated power (kw): 28.5 Rpm: 2600 Number of cylinders: 3 Max. Torque (N.m): 123 Displacement (L): 1.9 |
| Travel Parameters | Max. Speed (km/h): 10 Tire (track) model: 8.5 - 15 |
| Working Device Parameters | Loading capacity (kg): 500 Lifting: Arc - shaped lifting Bucket capacity (m³): 0.3 Rated flow (L/min): 60 High flow (L/min): / Tank capacity (L): 60 Weight with bucket (kg): 2300 |
| Dimension Parameters | Height at maximum extension (mm): 3300 Hinge pin height (mm): 2725 Total height (mm): 2000 Height to bottom of bucket (mm): 2558 Overall length without bucket (mm): 2300 Overall length with bucket (mm): 3080 Dumping angle at maximum height (°): 40 Dumping height (mm): 2050 Dumping reach (mm): 790 Rollback at ground position (°): 30 Rollback fully raised at max. height (°): 104 Wheelbase (mm): 897 Ground clearance (mm): 140 Angle of departure (°): 20 Front turning radius without bucket (mm): 1098 Front turning radius (mm): 1760 Rear turning radius (mm): 1296 Rear length (mm): 964 Track width (mm): 1080 Width (mm): 1350 Bucket width (mm): 1400 |
